. TP70P Quick Start TP-01436-10-31.We reserve the right to change the information in this manual without prior notice. Definitions of the Pins in Communication Ports.1-16 1.10 Controllers Supporting TP70P. 1-17 Chapter 2 Writing Programs Preparations.2-2 2.1.1 Hardware.2-2 2.1.2 Software.2-2 2.1.3 Tools and Materials.2-2 Wiring.2-2 2.2.1 Wiring Diagram for a Delta VFD-M Series AC Motor Drive.2-3. Wiring Diagram for External Terminals.2-3 2.2.3 Wiring Diagram for Communication.2-3 2.2.4 Setting Parameteres in a Delta VFD-M Series AC Motor Drive.2-4 Example.
2-4 Writing a Program for a Text Panel.2-5 2.4.1 Planning Objects.2-7 2.4.2. Wiring Relay Output Terminals.1-13 1.8.4 Wiring Analog Input Channels.1-14 1.8.5 Wiring Analog Output Channels.1-15 1.8.6 Wiring Temperature Measurement Input Terminals.1-16 Definitions of the Pins in Communication Ports.1-16 1.10 Controllers Supporting TP70P.1-17 1 - 1. T P 7 0 P Q u i c k St a r t 1.1 Introduction of TP70P TP70P is highly flexible in that it can be connected to various devices. The devices which can be connected to TP70P are shown in the block diagram below.
WPLSoft is a program-editing software made for the Delta DVP-PLC series used under. *Reference document: including various user manuals and technical. Basic Tips&Tricks Communication Cable with PC Software Download Link (WPLSoft & ISPSoft) - Freeware Delta PLC Getting Started Delta PLC Website Delta PLC FTP User: den-eindhoven / Pass: BuPd2175 Delta PLC Manual Application Manual DVP-ES2_EX2_SS2_SA2_SX2_SE Operation Manual On-Line Manual (ES/EX/SS) Delta High Speed I/Os Software Tutorials.
C h a p t e r 1 I n t r o d u c t i o n 1.3 Profile and Dimensions 1.3.1 Profile Front view Display/Touchscreen Back view Input/Output connector Side view RUN/STO P switc h 1 - 3. T P 7 0 P Q u i c k St a r t Side view USB port Communication port DC power input connector 1.3.2 Dimensions of TP70P Front side and right side (Unit: mm) TP70P-16TP1R, TP70P-32TP1R, TP70P-22XA1R, TP70P-21EX1R 205.6 142.6. If protection against water is required (NEMA 4X), a hole should be made to a tolerance of ±0.1 mm. 127.1 128.0 Thickness 0.54 190.1191.0 Unit: mm 1.4 Definitions of External Connectors TP70P-16TP1R TP70P-32TP1R TP70P-22XA1R TP70P-21EX1R ○ ○ ○ ○ ○. T P 7 0 P Q u i c k St a r t 1.5 Functional Specifications Model TP70P TP70P TP70P TP70P TP70P Specifications -32TP1R -16TP1R -22XA1R -21EX1R -RM0 Screen/Color 7” TFT LCD (65535 colors) Resolution 800×480 pixels Display LED backlight (It has a lifespan of twenty thousand hours at a Backlight type temperature of 25℃). C h a p t e r 1 I n t r o d u c t i o n 1.5.2 Devices in a PLC Item Range External input relay X0X7; X10X17 (.4) External output relay Y0Y7; Y10Y17 M0M511: 512 auxiliary relays (.1) General M768M999: 232 auxiliary relays (.1) 4096.2: They are latching/retentive devices. They can not be changed.3: Please refer to section 1.9 for more information.4: Please refer to section 1.5.1 for more information.
1.6 Electrical Specifications 1.6.1 Specifications for PLCs Model TP70P TP70P TP70P TP70P TP70P Item. C h a p t e r 1 I n t r o d u c t i o n Model TP70P TP70P TP70P TP70P TP70P Item -16TP1R -32TP1R -22XA1R -21EX1R -RM0 Storage -20°C60°C temperature Vibration/Sho International standards IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST.
T P 7 0 P Q u i c k St a r t 1.6.4 Electrical Specifications for Analog I/O Terminals Electrical specifications for the analog I/O terminals on TP70P-22XA1R Model Electrical specifications for the analog I/O terminals on TP70P-22XA1R. 1.7 Installation Please put (embed) TP70P into a control panel. Use the fasteners and the screws in the container in which TP70P is packaged. Insert the fasteners into the slots on TP710P, and then tighten the screws. (The torque applied to the screws should be 4.75 kg-cm. Please connect wires to the terminals +24V and 0V. The power supplied to TP70P should be in the range of 20.4 V DC to 28.8 V DC.
If the voltage of the power supplied to TP70P is less than 20.4 V DC, TP70P will stop running, and output devices will be off. C h a p t e r 1 I n t r o d u c t i o n 1.8.2 Wiring Input Terminals The power supplied to input terminals are DC power. There are two types of current.
They are sinking current and sourcing current. T P 7 0 P Q u i c k St a r t 1.8.4 Wiring Analog Input Channels TP70P-22XA1R Voltage input -10V +10V VI0- Shielded cable.1 Current input -20mA+20mA VI3- Shielded cable.1 Connected to on a power supply module. C h a p t e r 1 I n t r o d u c t i o n 1.8.5 Analog Wiring Output Channels TP70P-22XA1R Voltage output -10V+10V Shielded cable.1 AC motor drive, recorder, proportioning valve. Current output.4: Please do not wire the terminal . Definitions of the Pins in Communication Ports TP70P-16TP1R, TP70P-21EX1R, TP70P-22XA1R, TP70P-32TP1R RS-485 (COM2) RS-485 (COM3) 1 - 1 6. C h a p t e r 1 I n t r o d u c t i o n TP70P-RM0 RS-232 (COM2) RS-485 (COM3) Controllers 1.10 Supporting TP70P Controllers supporting TP70P Delta servers, Delta AC motor drives, Delta temperature controllers, and Delta PLCs Wiring: Delta server TP70P Controller Controller COM3 (RS-485) Male CN3 connector (RS-485) Pins in a male CN3 connector . T P 7 0 P Q u i c k St a r t Delta PLC TP70P Controller COM3 (RS-485) RS-485 1 - 1 8.
Delta Wplsoft Plc
2.2.2 Wiring Diagram for External Terminals.2-3 2.2.3 Wiring Diagram for Communication.2-3 2.2.4 Setting Parameteres in a Delta VFD-M Series AC Motor Drive.2-4 Example.2-4 Writing a Program for a Text Panel.2-5 2.4.1 Planning Objects.2-7 2.4.2 Managing Pages.2-7. T P 7 0 P Q u i c k St a r t 2.1 Preparations 2.1.1 Hardware The hardware required is list below.
TP70P-16TP1R Power supply module DVPPS02 VFD-M series AC motor drive 2.1.2 Software The software required is listed below. C h a p t e r 2 Wr i t i n g P r o g r a m s 2.2.1 Wiring Diagram for a Delta VFD-M Series AC Motor Drive Brake resistor ( optional ) The specificati ons for the main circ uit terminal is M3.0.
TP70P are used to control the forward/backward rotation of the AC motor drive. RS-485 communication (COM3) is used to read/set the frequency of signals output by the VFD-M series AC motor drive.
If the AC motor drive breaks down, an alarm signal in the AC motor dirve will be sent to TP70P. Actions: If the AC motor drive rotates forwards, its forward rotation indicator will be on, and the input which makes the the AC motor drive rotate barckwards will be ineffective. 2.4 Writing a Program for a Text Panel The writing of a program for a text panel is described in this section. Please refer to TPEditor User Manual for more infomraiton about the functions of TPEditor. Step 1: Start TPEditor. (StartProgramsDelta Industrial AutomationPLCTPEditor x.xxTPEditor x.xx) Welcom screen.
In the New Project window, select DELTA VFD Inverter in the HMIPLC section, select TP70P in the TP Type drop-down list box, and type “TP70-VFD CTRL” in the File Name box. AC motor drive connected. Planning pages Plan a boot page on which the connection between TP70P and a VFD-M series AC motor drive is displayed. The state of the AC motor drive used is displayed on page 0, that is, the current rotational speed of the AC motor drive, a warning message, forward rotation control, backward rotation control, and stop control are displayed on page 0.
RTC Display ( ): The time on the real-time clock in TP70P is displayed on the screen of TP70P, or the time in related devices will be read and dispalyed on the screen of TP70P. The difference between a multi-state image and a dynamic image is that text can be inserted in a multi-state image. Numeric Input ( ): A numeric input displayed on the screen of TP70P is used to write a value to a related device. X-Y Curve ( ): The values in related devices can be represented by an X-Y curve displayed on the screen of TP70P. After the users add an object, they have to set the parameters related to be object. After users double-click a button in the working area, the Button Setting window will appear.
In the example in this chapter, Y0 in TP70P is used to control the forward rotation of an AC motor drive. C h a p t e r 2 Wr i t i n g P r o g r a m s After the users click the Property tab in the window used to set the parameters of an object, they can set the appearance of the object. T P 7 0 P Q u i c k St a r t If the users want to make a copy of an object in the working area, they have to click the object, right-click the object, click Copy on the context menu which appears, right-click the object, and click Paste on the context menu which appears. C h a p t e r 2 Wr i t i n g P r o g r a m s The users can complete the page shown below in the way described above. Setting the parameters of objects: Related device Object Button/Objec. T P 7 0 P Q u i c k St a r t Related device Object Button/Objec Item Other settings Communication Device description t type method address Total States: 21 Display Sequence: From Min to Max Current State (Device Value=Range Value): Please refer to the table below.
In the example in this chapter, the communication protocol between the VFD-M series AC motor drive used and TP70P is “9600, 7, E, 1”. After users click TP Other Setting in the Basic Configuration window, they can select a station address, set the brightness of the backlight that illuminates the screen of TP70P, enable the buzzer of TP70P, set a password, select a boot page, etc. In the example in this chapter, a user-defined boot page is designed, and therefore the User Define option button in the Start-Up Menu Display section is selected. C h a p t e r 2 Wr i t i n g P r o g r a m s After the program is compiled, the users can download the program.
After the users click Write to TP on the Communication menu, or on the standard toolbar, the Download Setting window will appear. PLC program. The writing of a program for the PLC used in the example in this chapter is described below. The Delta software which supports TP70P is WPLSoft and ISPSoft. Please refer to WPLSoft User Manual and ISPSoft User Manual for more information about the usage of WPLSof and ISPSoft. In the Select a PLC Model window, type “TP70-VFD CTRL” in the Program Title box, select TP70P/TP70G in the Select drop-down list box, and type “TP70 example” in the File Name box.
T P 7 0 P Q u i c k St a r t After OK in the Communication Setting window is clicked, a project environment will be displayed (the program title set will appear in the upper left corner of the Delta WPLSoft window). 2.5.1 Planning a Program In order to meet the requirements of the system used in the example in this chapter, the following conditions need to be planned. C h a p t e r 2 Wr i t i n g P r o g r a m s 2.5.2 Control Program The control program shown below is created according to the conditions planned in section 2.5.1. Please refer to WPLSoft User Manual for more information about the usage of WPLSoft. 2.5.3 Compiling and Downloading a Program After users write the program shown in section 2.5.2, they can download the program to TP70P. The users have to compile the program first.
After the users click Ladder = Instruction on the Compiler menu, or on the standard editing toolbar, the program will be compiled. After the users select the Device Comment checkbox, the System Block window will appear. The users can select devices and set device ranges. After the users click OK in the Transfer Setup window, the program will be downloaded to TP70P. 2.6 Monitoring and Debugging a Program 2.6.1 Monitoring a Program. T P 7 0 P Q u i c k St a r t If the users want to chage the state of a device, they can right-click the device, and click an item on the context menu which appears.

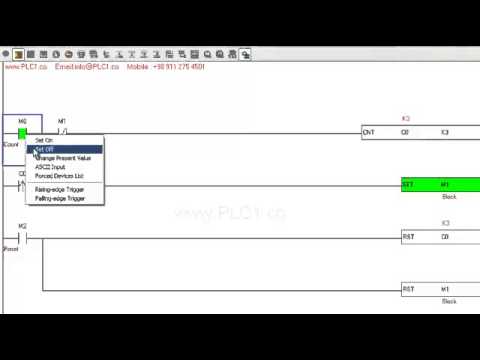

In the figure below, M0 is set to ON. Note: Set On and Set Off can not be used to change the state of a device corresponding to an actual I/O device because the state of the actual I/O device immediately overwrites the value which is set. C h a p t e r 2 Wr i t i n g P r o g r a m s Minotring devices It is sometimes inconvenient for users to search for devices in a logic program that the users test, and change the values in the devices because the devices are in different sections of the logic program. M0 is set to ON here. When M0 is ON, Y0 is ON, the AC motor drive used rotates forwards, and the users can see that the forward rotation indicator on the screen of TP70P is green. C h a p t e r 2 Wr i t i n g P r o g r a m s 2.6.2 Removing System Errors When a system runs, errors may occur. If users follow the procedure introduced in this chapter, there will be no error.
T P 7 0 P Q u i c k St a r t After is clicked, the value in D1004 will be shown. The error code shown in the figure above is HD03. It indicates that the operands of the instruction DHSCS are invalid. Frequently Asked Questions and Answers Table of Contents Installing a USB Driver.3-2 Descriptions of the Communication Ports on TP70P.3-4 Setting COM2.3-5 Using COM2 as a Master Station.3-6 Setting COM3.3-7 Setting an RTU Mode for COM3.3-9 Using COM3 as a Slave Station. 【Question】How to install a USB driver? 【Answer】If users use TP70P for the first time, they have to follow the steps below, and install a USB driver.
Download the latest version of TPEditor from the official website of Delta, and install the software. (Official website of Delta:.
P is also shown in the PC COM Port box in the PC Communication Setting (PC TP) section in TPEditor. TP70P can communicate with the computer by me ns of the communication port. TPEditor is used to upload/download a text panel program, and WPLSoft is used to upload/download/monitor a PLC progra. T P 7 0 P Q u i c k St a r t 3.2 Descriptions of the Communication Ports on TP70P 【Question】What are the differences among the communication ports on TP70P, and methods of setting the communication ports, and how to set them? 【Answer】There are three communication ports on TP70P.
C h a p t e r 3 F r e q u e n t l y A s k e d Q u e s t i o n s a n d A n s we r s 3.3 Setting COM2 【Question】How to set COM2? 【Answer】COM2 supports the PLC. Using COM2 to read the data in a DVP series PLC and write data to a DVP series PLC is described below.
Example: COM2 is used to set Y0 on a DVP series PLC to ON. Step 1: Please download the program below to TP70P.
C h a p t e r 3 F r e q u e n t l y A s k e d Q u e s t i o n s a n d A n s we r s Step 2: Connect COM2 to the two RS-485 wires connected to a DVP series PLC. When TP70P runs, Y0 on the DVP series PLC is ON. Example: COM3 is used to read the value in D0 in a DVP series PLC.
Step 1: Select DELTA PLC in the HMI PLC section in the New Project window. Step 2: Create a numeric display in the working area. Select the External PLC Setting option button, and set a PLC address in the Refer Device window. 【Answer】When COM3 functions as a master station, it supports three RTU drivers. One is a Delta VFD RTU mode.
It supports the RTU modes of Delta AC motor drives. Another is a Delta Modbus RTU mode.
It can be used to connect a product which supports Delta Modbus. The other is a Modicon Modbus RTU mode. It can be used to connect a product which supports Modicon Modbus RTU communication. Step 3: In the Basic Configuration window, click TP PLC Protocol, and then set a communication format for COM3. (In the example, the communication format set is (9600, 7, E, 1).) Step 4: Compile the program created, and download the program to TP70P.
Connect COM3 on TP70P to an RS-485 communication port on a PLC. Step 3: In the Basic Configuration window, click TP PLC Protocol, and then set a communication format for COM3. (In the example, the communication format set is (9600, 7, E, 1).) Step 4: Compile the program created, and download the program to TP70P.
Connect COM3 on TP70P to an 3 - 11. RS-485 communication port on a PLC. Step 5: Download the program below to the PLC.
Step 6: When the PLC runs, users can see that the value displayed on the screen of TP70P is changed to 1. 3.8 Data Exchange 【Question】How does TP70P exchange data with a device by means of COM3 instead of objects in TP70P?. Step 2: Select the Read Block Setting checkbox in the Read/Write Block Setting section. Read Start Addr.: The values in D0D7 in the DVP series PLC are read. Write Start Addr.: The values which are read are put in D0D7 in TP70P. Step 3: Click at the right side of the Read Start Addr.
T P 7 0 P Q u i c k St a r t Write Block Setting: The values in D10D17 in TP70P are written to D10D17 in the DVP series PLC. Step 1: Select the Write Block Setting checkbox in the Read/Write Block Setting section.
Write Start Addr. Select the External PLC Setting option button and D10 in the Refer Device window.
Step 3: After the steps above are complete, and the program in TPEditor is downloaded to TP70P, TP70P can exchange data with the DVP PLC series by means of COM3. T P 7 0 P Q u i c k St a r t MEMO 3 - 1 6.
